iSight

iSight – Artificial Intelligence Brings Vision to the Visually Impaired

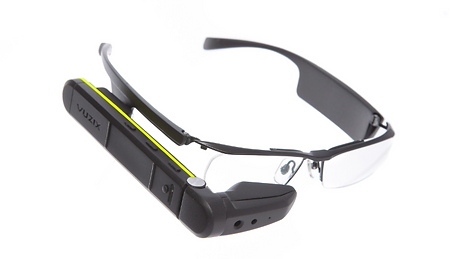

M300 SMART GLASSES

alternative-text

Vuzix M300 series smart glasses delivers a “hands free” digital world, providing unprecedented access to information, data collection and more. Improve existing workflows and open new opportunities in industrial, medical, retail, supply chain, remote help desk, and other aspects of your business.

AUDIO
  • Ear speaker
  • Dual noise canceling microphones

CAMERA
  • Up to 10 megapixel stills
  • Up to 1080p 24fps video
  • Fast Auto-Focus
  • Optical Image Stabilization
  • Flash/scene illumination

UNIVERSAL MOUNTING
OPTIONS AVAILABLE
  • Eyeglass frames with or without lens
  • Safety glasses
  • Hard hat mount
  • Headband mount

CONNECTIVITY
  • MicroUSB 2.0 HS
  • Wi-Fi 2.4/5Ghz 802.11a/b/g/n/ac MIMO 2x2
  • BT 4.1/2.1+EDR

SENSOR SYSTEMS
  • Proximity inward facing
  • Proximity/ALS outward facing
OPTICS
  • Display resolution: nHD color displays
  • Aspect ratio: 16:9
  • Field of View (diagonal): 16.7 degrees, equivalent to a 5 in.
    mobile device screen seen at 17 inches.
  • Brightness: >2000 nits
  • 24 bit color
  • Supports left or right eye use
  • Dual Core Intel Atom CPU
  • 2GB system RAM
  • Android 6 OS
  • 64GB internal flash memory

CONTROLS
  • 4 standard Android control buttons
  • Voice control – customizable and supports multiple languages
  • 2 Axis touch pad with gesture

INTEGRATED HEAD TRACKER
  • 3-degree of freedom head tracking
  • 3 axis gyro
  • 3 axis accelerometer
  • 3 axis mag/integrated compass

BATTERY
  • 160mAh internal battery supports hot swapping of external batteries
  • 860mAh smart external battery
  • Supports USB batteries providing at least 1 Amp
  • 2 – 12 hours of operation based on external battery choice

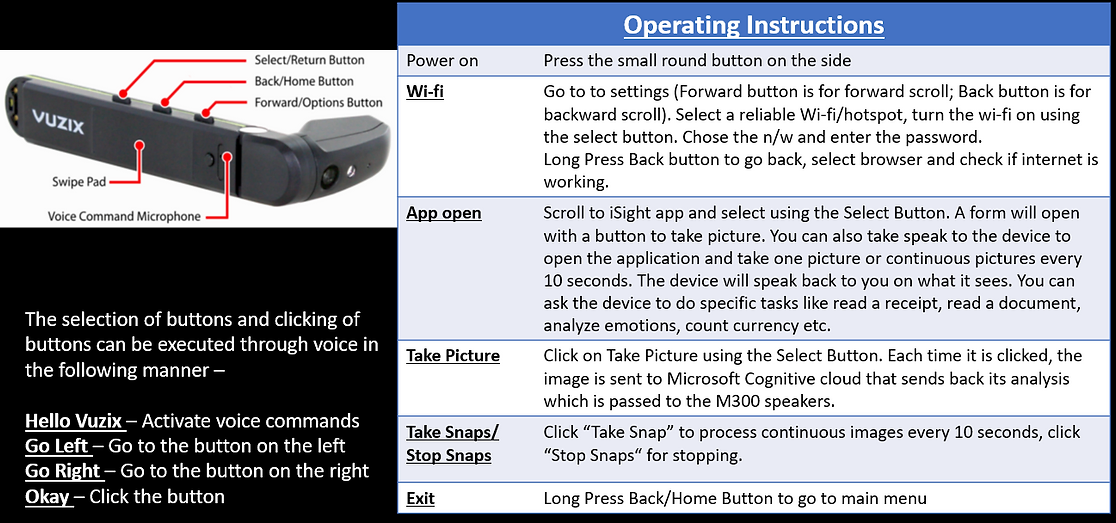

Instruction to use iSight Application
